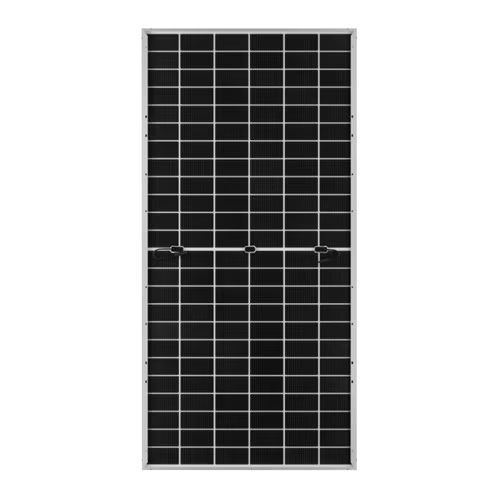

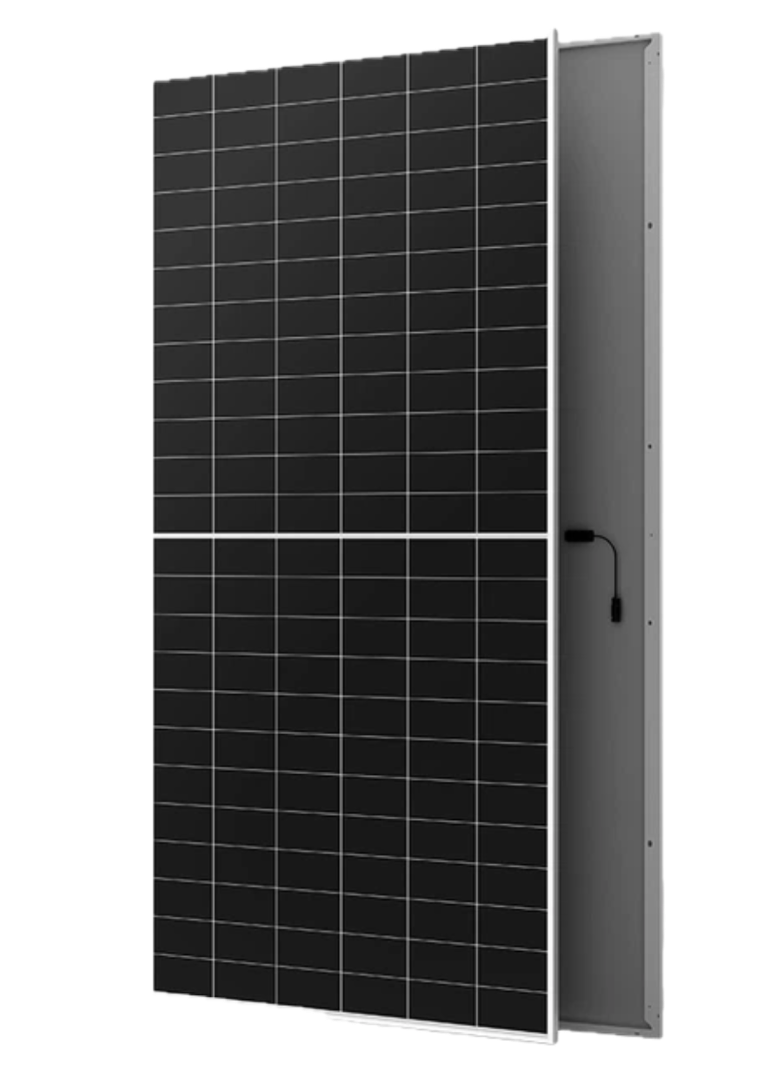

The Aiko-G645-MCH72Dw bifacial Silver Frame offers high efficiency and reliable performance thanks to the advanced **N-Type ABC (All Back Contact) technology**. With a power of 645 Wp and **144 cells**, this panel delivers an excellent efficiency of 23.9% , even in diffuse light or cloudy conditions.

Advantages of ABC (All Back Contact) technology:

✔ Maximum efficiency through fully Back Contact Cells

✔ Higher power per square meter

✔ Minimal degradation and long lifespan

✔ High resistance to microcracks and partial shade optimization

Technical specifications:

• Power: 645 Wp

• Color: Silver Frame

• Dimensions: 2382 x 1134 x 30 mm

• Weight: 33.5 kg

• Warranty: 15 year product warranty

• Output warranty: 30 years

• Cell technology: N-Type ABC (All Back Contact)

• Module efficiency: 23.9%

• Connector: MC4-Evo2, cable length 1.2m

• Max. system voltage: 1500V DC

• Protection class: IP68, 3 bypass diodes

• Bifacial Factor: 70±5%

Datasheet Download
