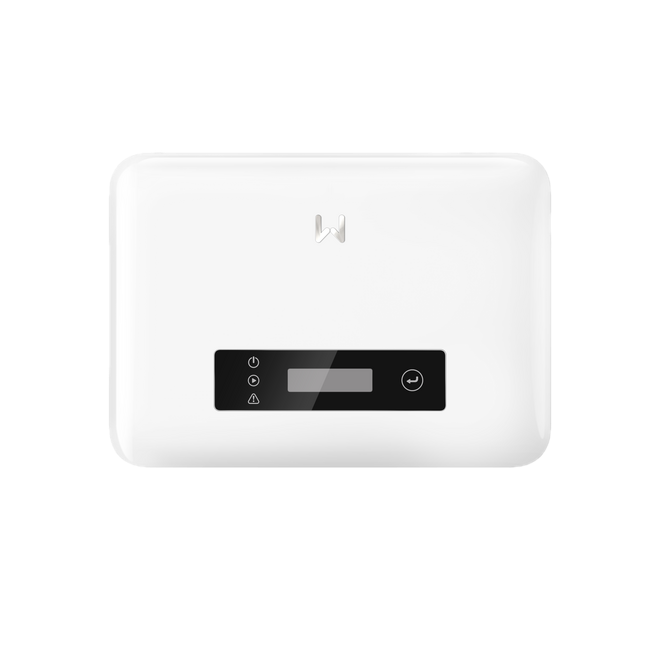

The GoodWe 1000-XS-30 is a compact and lightweight inverter designed for residential solar installations. Despite its small size, this inverter delivers excellent performance. With a maximum DC input current of 16A per string and a start-up voltage of only 50V, it is ideal for efficient energy production. The GoodWe 1000-XS-30-3 belongs to the XS Plus+ series and comes with a 10-year warranty.

Key Features:

✔ High efficiency with a maximum efficiency of 97.1%

✔ 1-phase inverter with 1 MPPT and 1 DC input

✔ Supports RS485, Wi-Fi and LAN communication

✔ Weatherproof IP65 housing for indoor and outdoor mounting

✔ Compact and lightweight – only 4.6 kg

Technical specifications:

• Maximum output current: 4.6A

• Maximum efficiency: 97.1%

• Phase: 1-phase

• MPPT: 1 MPPT, 1 DC input

• Communication: RS485 / Wi-Fi / LAN

• Protection class: IP65

• Weight: 4.6 kg

• Dimensions: 306 x 218 x 119 mm

Datasheet download
