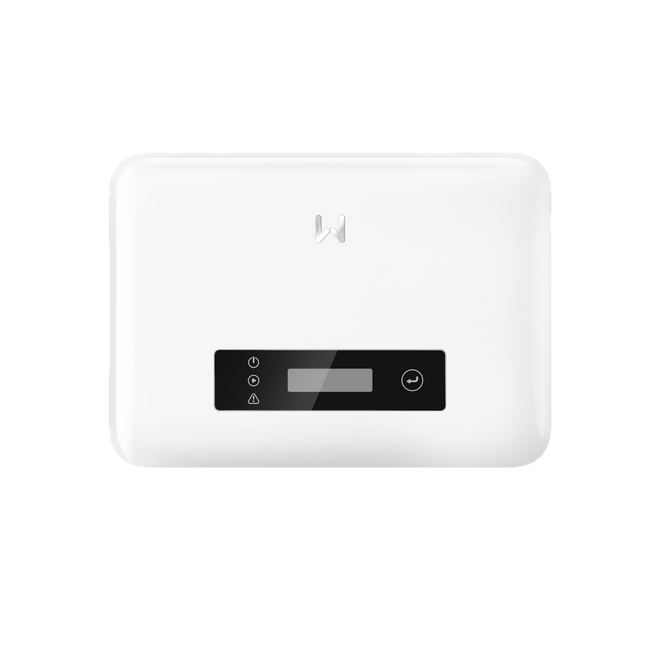

The GoodWe 1500-XS-30 is a compact and efficient inverter, specially designed for residential solar installations. With its light and small design, it is easy to install and offers excellent performance. With a maximum DC input current of 16A per string and a start-up voltage of only 50V, it is ideal for efficient energy production. The GoodWe 1500-XS-30-3 belongs to the XS Plus+ series and comes with a 10-year warranty.

Key Features:

✔ High efficiency with a maximum efficiency of 97.2%

✔ 1-phase inverter with 1 MPPT and 1 DC input

✔ Supports RS485, Wi-Fi and LAN communication

✔ Weatherproof IP65 housing for indoor and outdoor mounting

✔ Compact and lightweight – only 5.8 kg

Technical specifications:

• Maximum output current: 6.5A

• Maximum efficiency: 97.2%

• Phase: 1-phase

• MPPT: 1 MPPT, 1 DC input

• Communication: RS485 / Wi-Fi / LAN

• Protection class: IP65

• Weight: 5.8 kg

• Dimensions: 306 x 230 x 119 mm

Datasheet download
