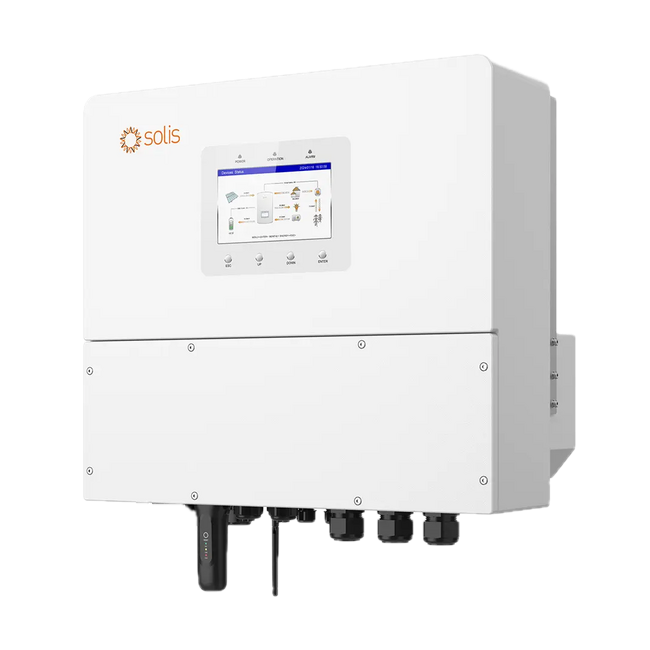

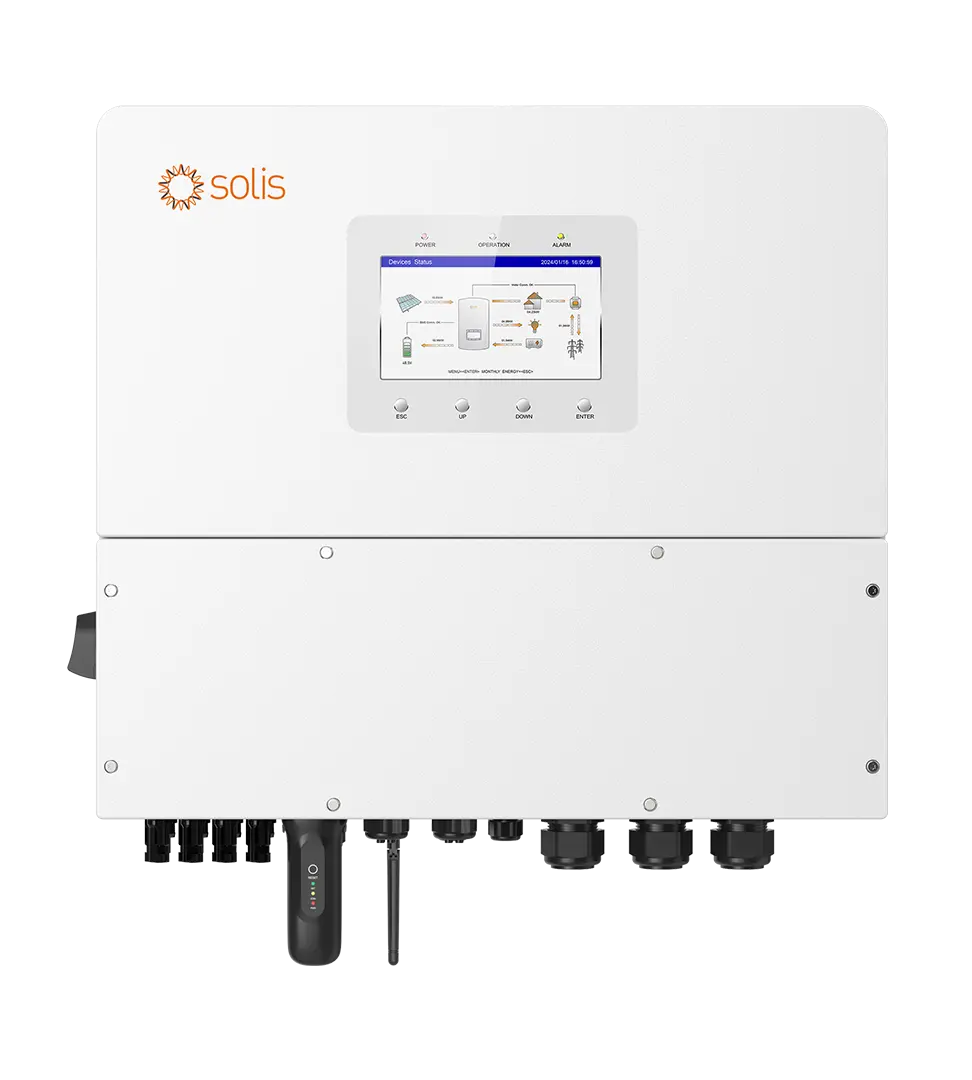

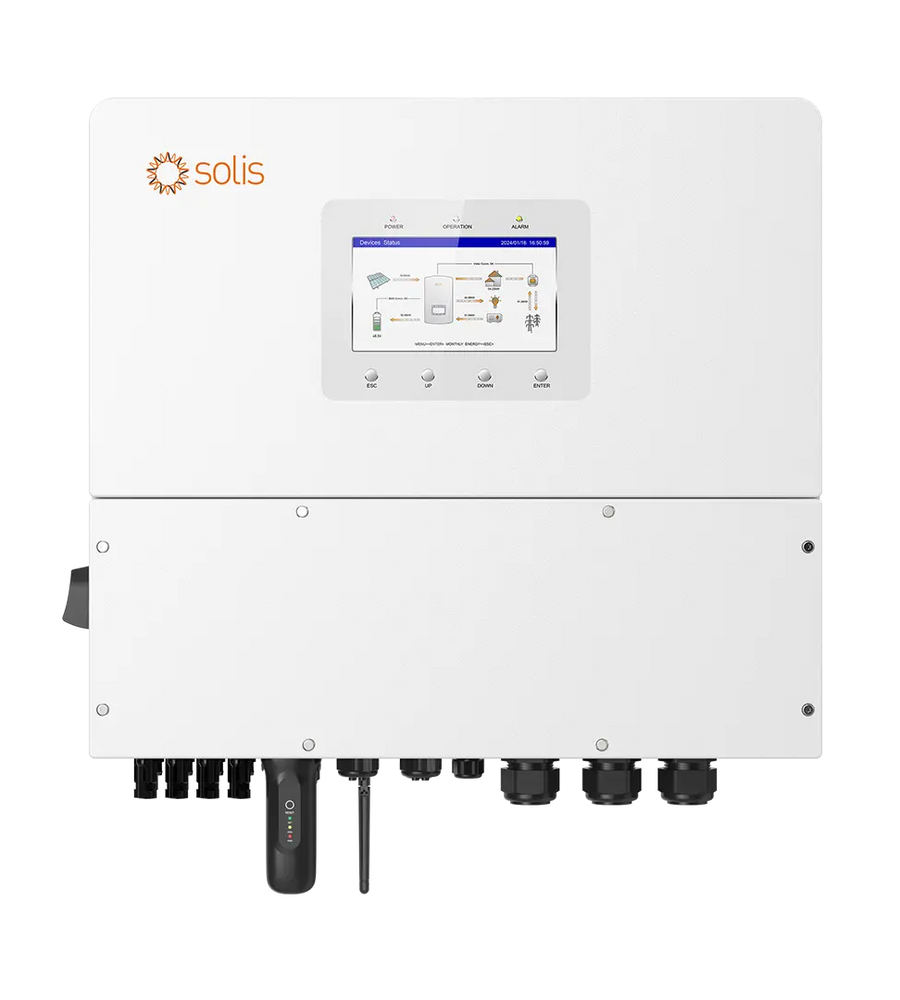

The Solis S6-EH3P15K-H is a versatile three-phase hybrid inverter for PV systems with high-voltage storage. With a battery capacity of up to 15 kW and advanced protection, this solution is ideal for dynamic energy demands.

Key Features:

✔ High efficiency up to 97.7%

✔ Supports SG heat pump and peak shaving

✔ Generator compatible and with dual backup output

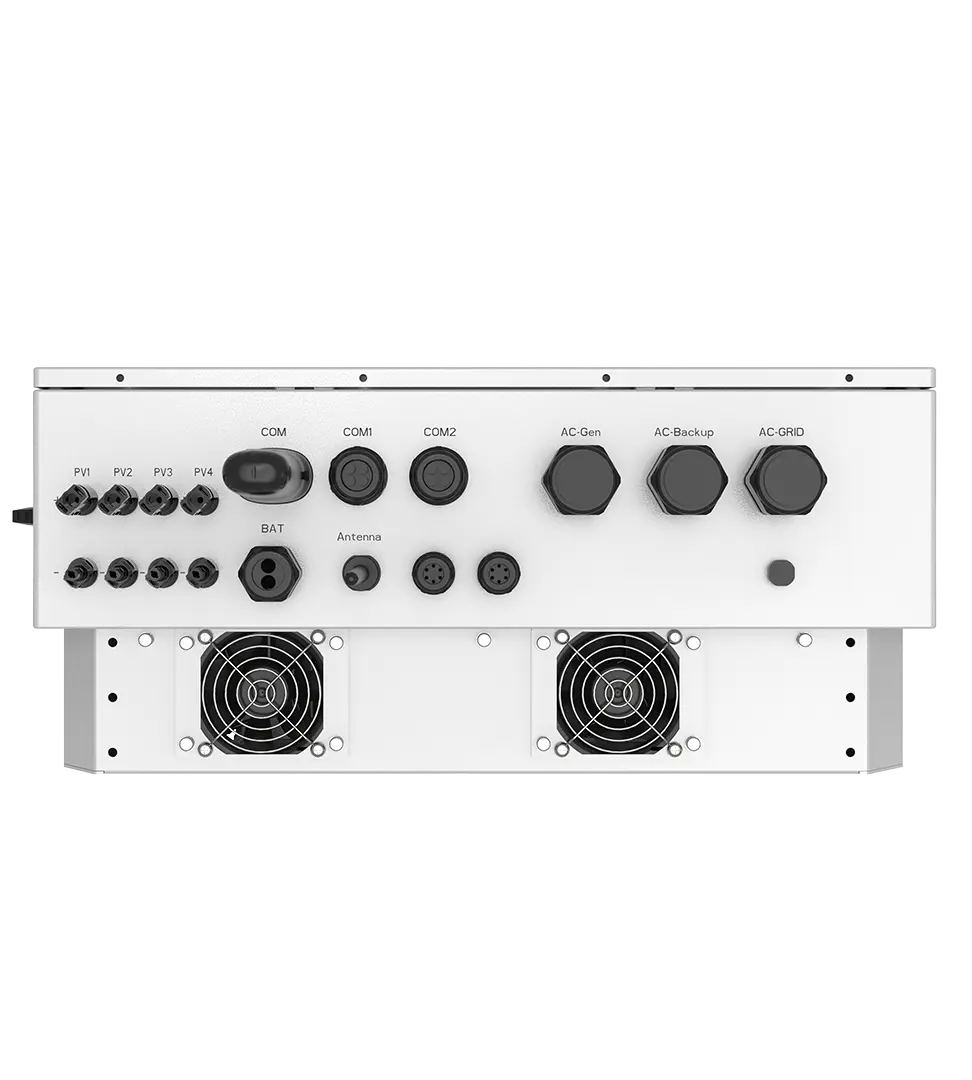

✔ Max. 4 MPPTs with wide voltage ranges

✔ Communication: CAN, RS485, Ethernet, Bluetooth, Wi-Fi optional

Technical specifications:

• Nominal power: 15,000 W

• Max. PV input: 30,000 W

• Battery voltage range: 120 – 800 V

• Max. charge/discharge current: 50 A

• Weight: 35.2 kg – Dimensions: 563 × 546 × 250 mm

• Backup AC voltage within 10 ms – IP66

Datasheet download
