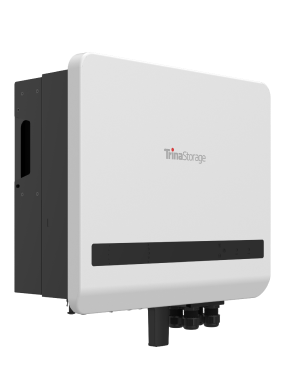

The Nexeos TRH 12K-T3 is a powerful three-phase hybrid inverter for HV batteries, designed for residential and small commercial applications. Thanks to its wide battery voltage range, high efficiency and EPS functionality, this inverter offers maximum flexibility and reliability in energy management.

Key Features:

✔ 3-phase hybrid inverter for high voltage batteries

✔ Maximum efficiency of 98.2%

✔ Supports EPS (emergency power supply)

✔ 2 independent MPPTs for flexible string configuration

✔ Suitable for self-consumption, mains input and backup use

Technical specifications:

• Rated AC power: 12,000 W

• Max. output current: 19.0 A

• Battery voltage range: 160 ~ 600 V

• Dimensions: 548 × 468 × 224 mm

• Weight: 28.5 kg

• Protection class: IP66
