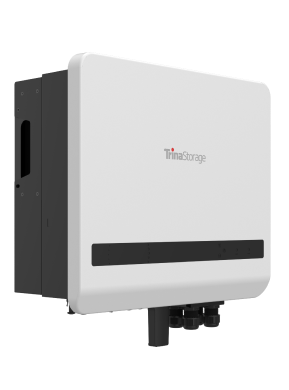

The Nexeos TRH 8K-T3 is designed for larger households that want to be energy independent. This hybrid 3-phase inverter supports high voltage batteries and has advanced features such as EPS and support for grid independent use.

Key Features:

✔ 3-phase hybrid inverter for HV batteries

✔ High efficiency up to 98.2%

✔ Suitable for self-consumption, mains input and backup

✔ 2 MPPTs for flexible string configuration

Technical specifications:

• Rated AC power: 8,000 W

• Max. output current: 12.7 A

• Battery voltage: 160~600 V

• Dimensions: 548 × 468 × 224 mm

• Weight: 28.5 kg

• Protection class: IP66

Datasheet download
