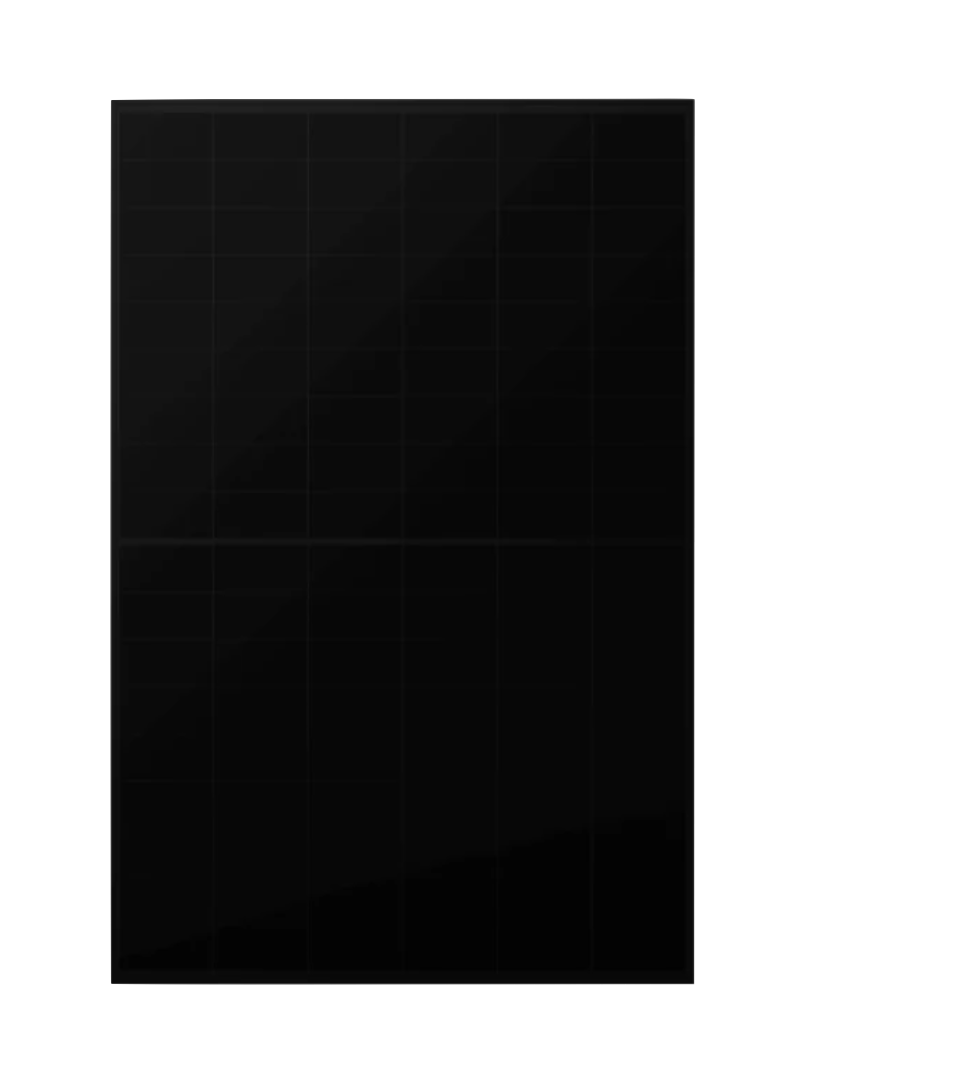

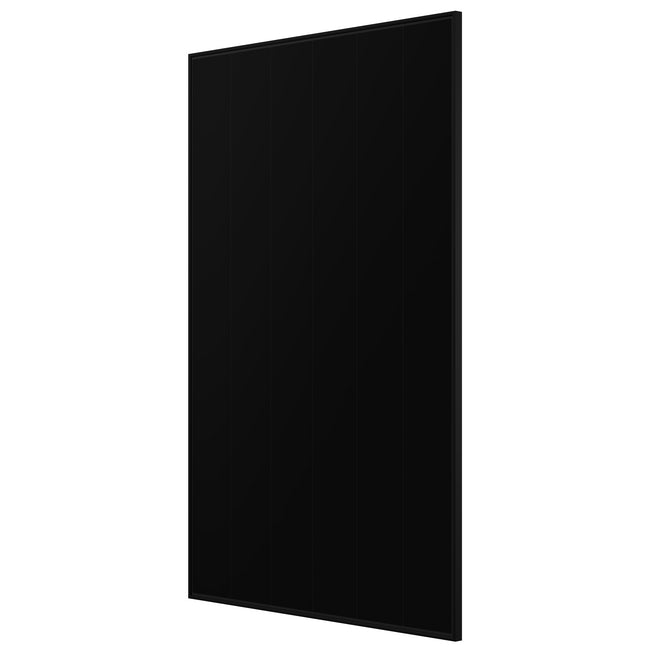

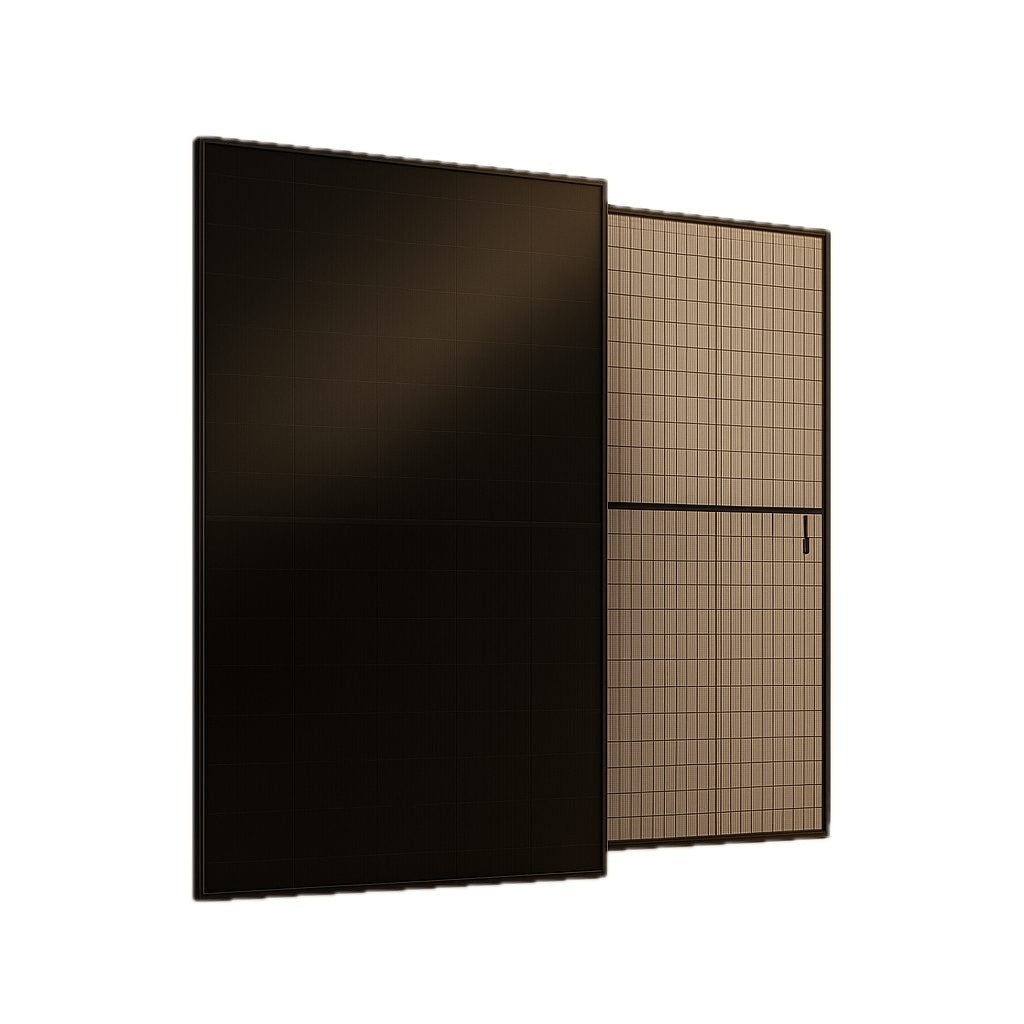

The Aiko Neostar A475-MCE54Db All Black offers high efficiency and reliable performance thanks to the innovative ABC (All Back Contact) technology . With a power of 475 Wp and N-Type monocrystalline cells, this panel delivers an excellent yield of 23.8% , even in diffuse light or high temperatures. The sleek full black design also makes this panel visually attractive for aesthetically sensitive installations.

Advantages of ABC (All Back Contact) technology:

✔ Maximum efficiency through fully Back Contact cells

✔ Higher power per square meter thanks to N-Type technology

✔ Long life with minimal power degradation

✔ Improved performance in shadow and micro-cracks due to dual-glass design

Technical specifications:

• Power: 475 Wp

• Color: All Black (black frame & black glass)

• Dimensions: 1762 x 1134 x 30 mm

• Weight: 24.5 kg ±3%

• Warranty: 15 year product warranty

• Output warranty: 30 years linear

• Cell technology: ABC (All Back Contact) N-Type monocrystalline

• Module efficiency: 23.8%

• Connector: MC4-Evo2, cable length 1.2 m

• Max. system voltage: 1500V DC

• Protection class: IP68, 3 bypass diodes

Datasheet Download
